Integrated Communication Systems
Integrated, IP-based communication management for surface ships, submarines and shore stations.
AEROMARITIME develops , designs and produces communications systems to meet specific customer requirements using the newest technologies for worldwide military naval applications.
The APCOS® 4000 central switching platform was developed to meet the latest requirements for a digital communications network. The associated control software COSYMA (Communication System Manager) provides sophisticated and comprehensive system control.
For telex and military email procedures, security is our highest priority: SAMMS® (Secure Automatic Military Messaging System) stands for user-friendly, menu-driven ACP 127 message handling.
Recognition systems such as the IFF Interrogator/ Transponder System provide unambiguous results in the identification of foreign platforms. In extreme conditions and confined spaces, AEROMARITIME multifunction submarine antennas are installed on submarines.
APCOS® 4000

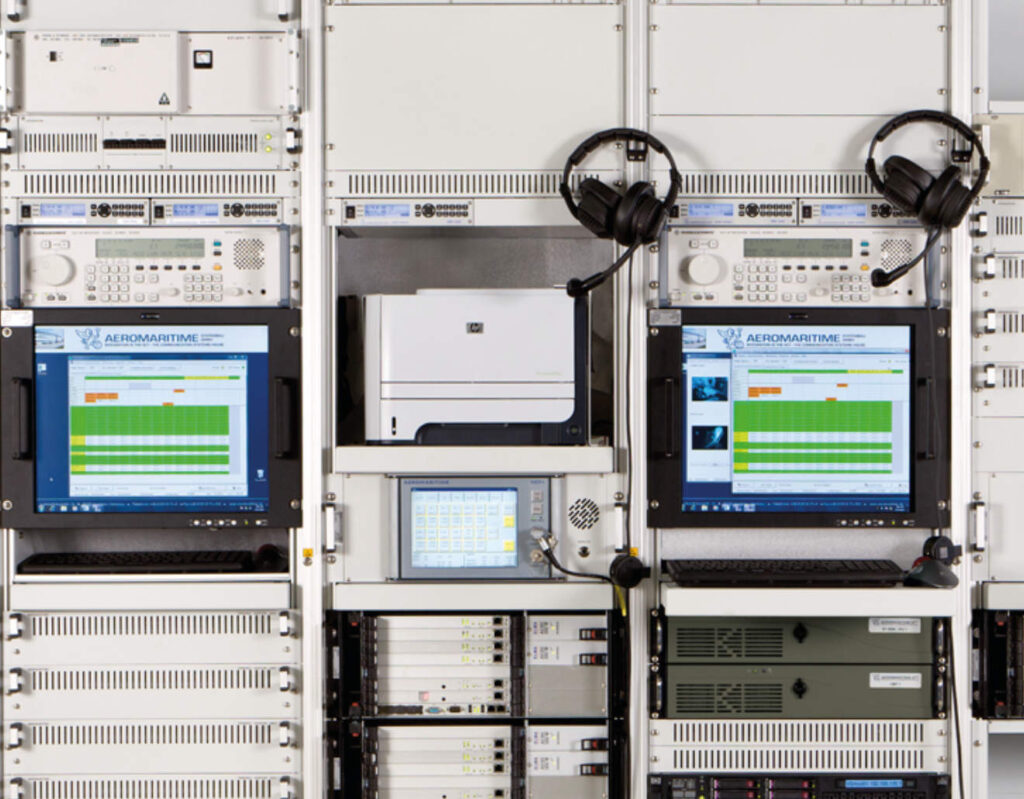

AEROMARITIME’s proven Advanced Platform Communications System APCOS® 4000 is designed to meet today’s and tomorrow’s requirements for tactical and strategic digital communications networks. APCOS®4000 is a hybrid routing and switching communications platform suitable for virtually all military communications requirements.
- Tactical voice communication
- Internal voice communication
- External communications with existing and future radio systems (e.g. JTRS)
- Voice, data, control signal routing and switching
- IP routing, voice over IP
- Computer-to-computer communications
- Administrative communication services
- Strict separation of classified and unclassified information to ensure IT Security

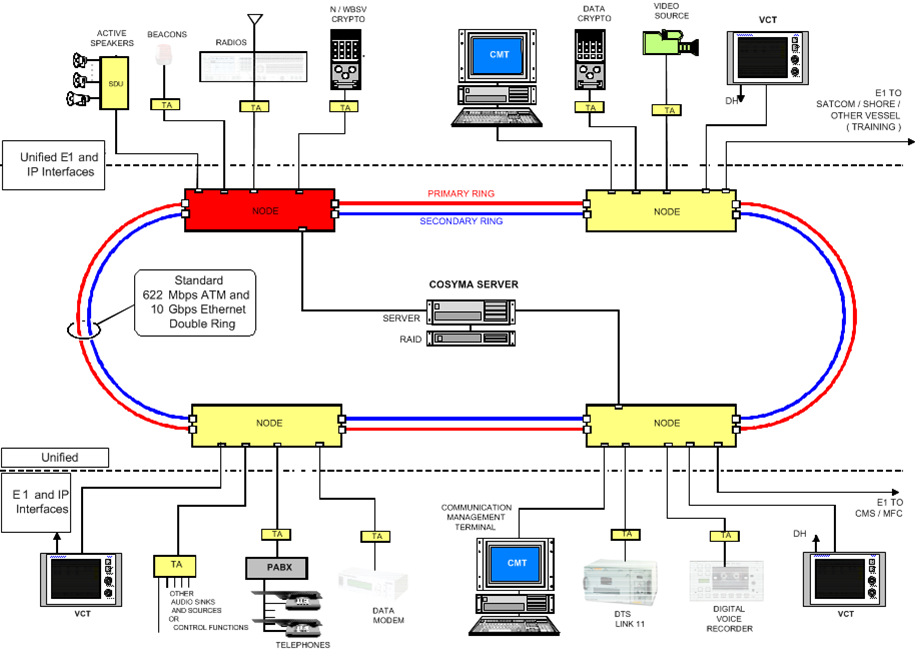

Network
Nodes
- For switching and conferencing,
- Interconnected via redundant ATM network links;
- Connected to Terminal Adapters (TA) via unified digital interfaces.
Terminal Adapters (TA)
For the Adaptation of the external Terminals.
Voice & Control Terminals (VCT)
The Nodes of the system are interconnected by a dual FOC ring to guarantee a maximum of survivability in case of cable breaks or Node faults in the system.
Communication System Manager (COSYMA)
Communications Network Control (CNC)
Radio & Device Control (RDC)
Secure Automatic Military Message Handling System (SAMMS®)
The COSYMA subsystem includes a server and a number of workstations which provide overall system and network management, including full control of all major radio equipment, modems and ancillary equipment, as well as message handling.
The Communications Network Control (CNC) component of COSYMA provides the following functions for the control of the APCOS® 4000 system:
Administration
Application specific configuration of the system, i.e. topology, routing.
Supervision
Monitoring of operational status, event management, logging of system events such as alarms, information and error messages.
Diagnostics
Functional checks of components on different system levels
Planning and control of assignments
Control of access rights to established or planned links, frequency and antenna management, propagation prediction
Link control
Control of allocation, activation and deactivation of communications links
Traffic supervision
Control and visualisation of traffic status and allocated communications links
Comprehensive help
Complete help database, context help menu
RESOURCES

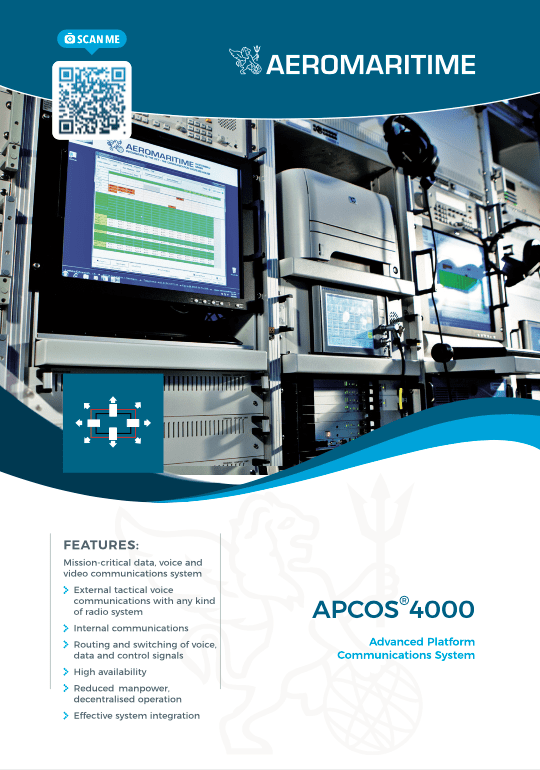

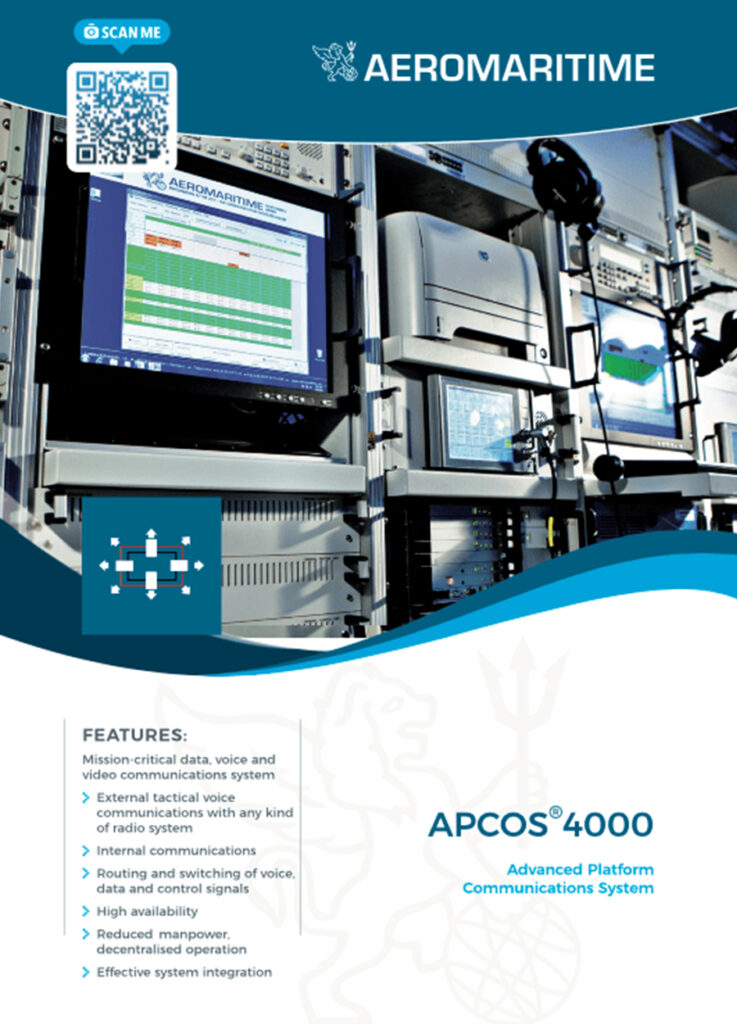

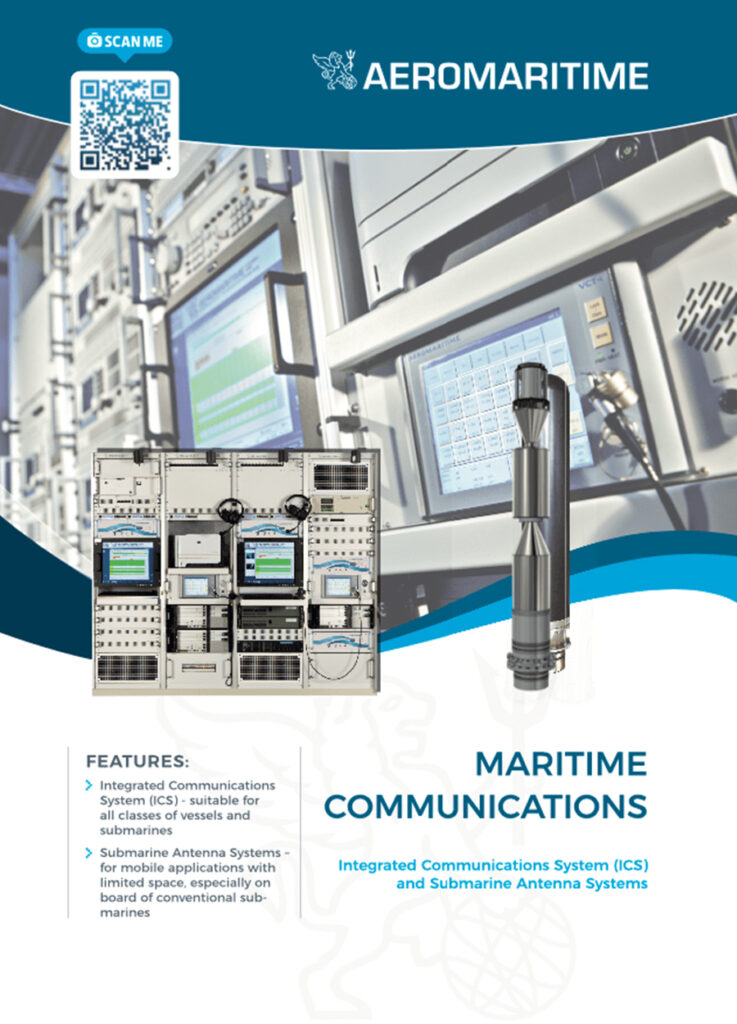

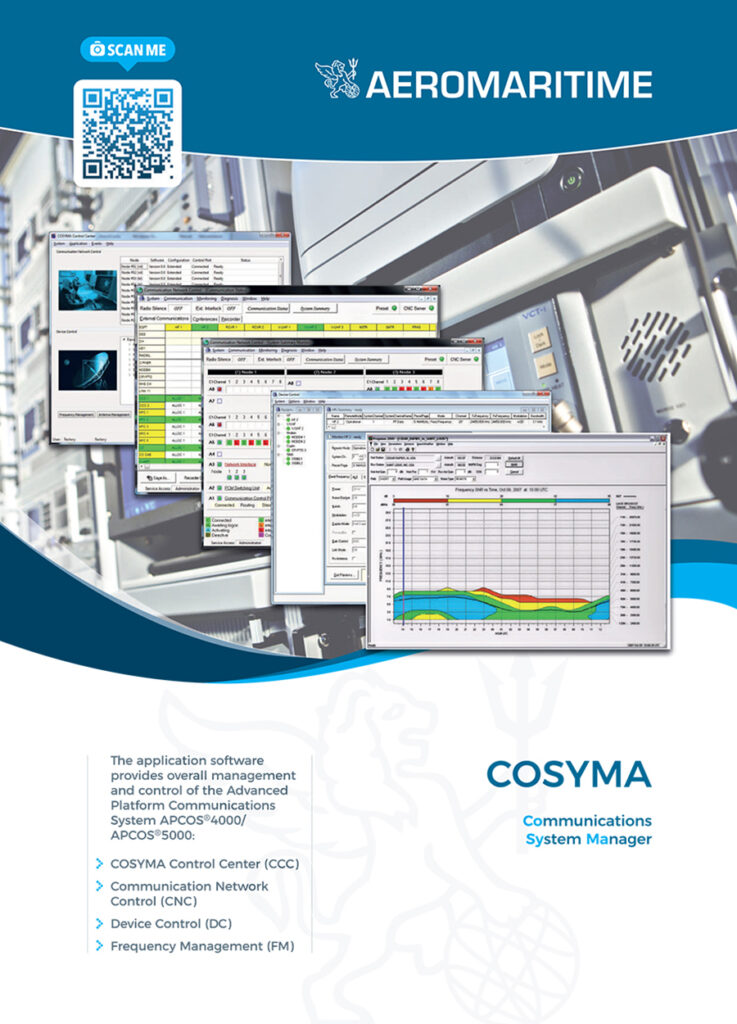

Download Datasheets
